Description

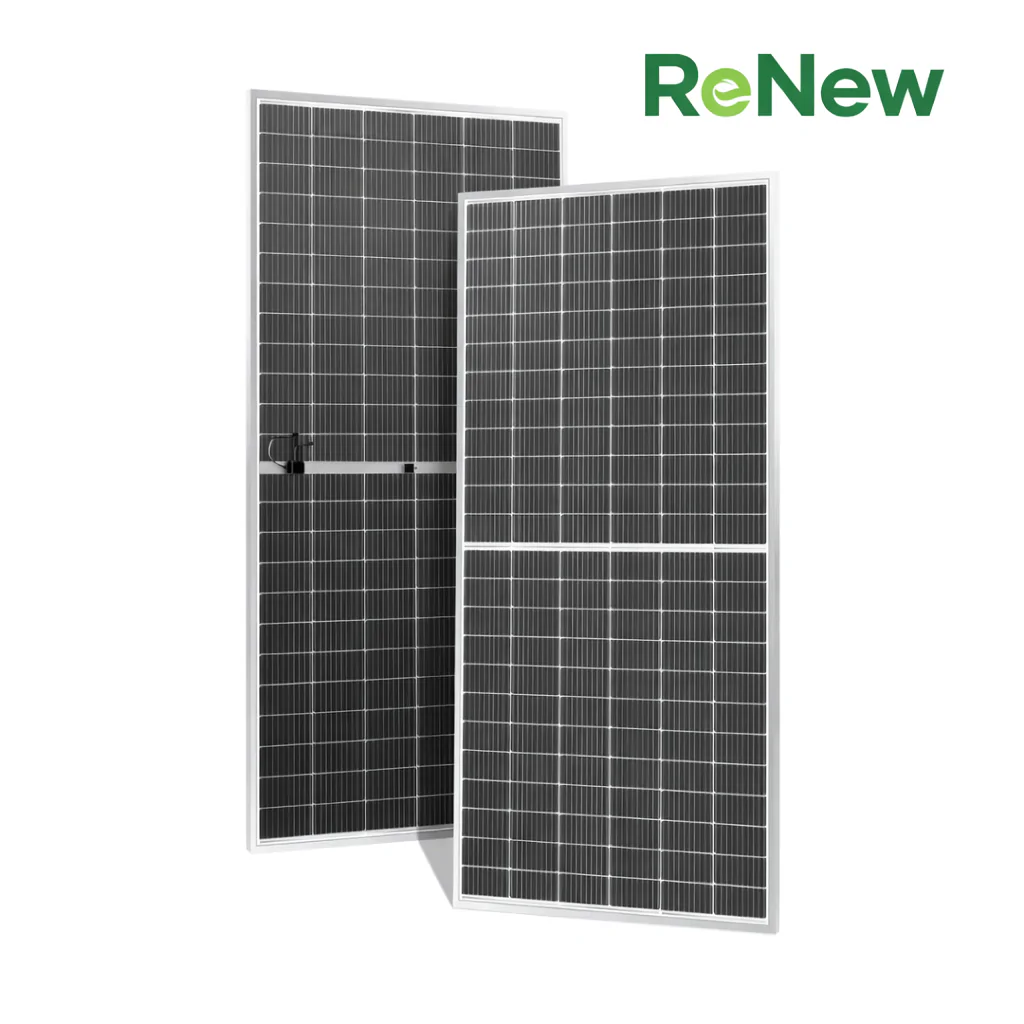

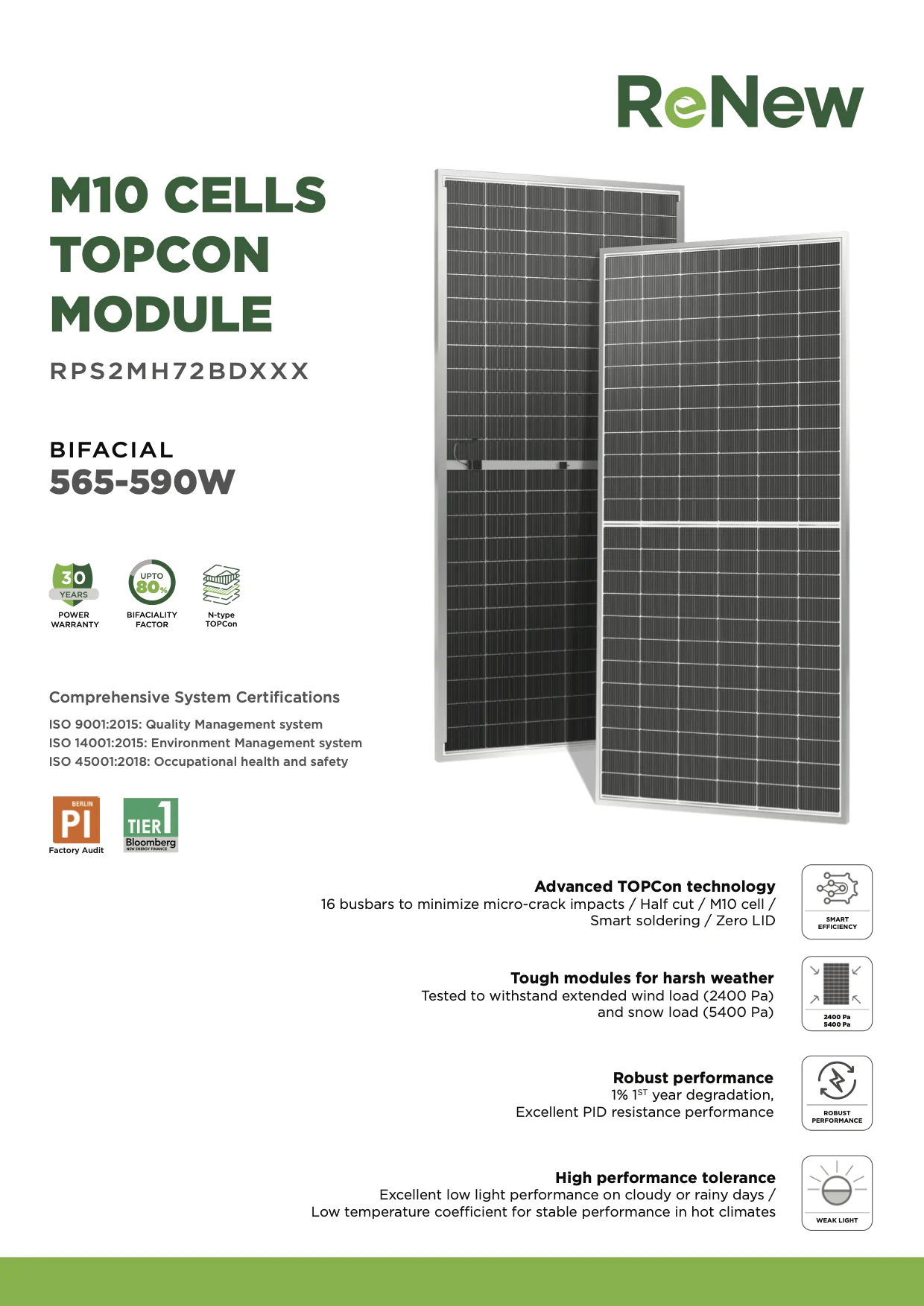

Take solar performance to the next level with the ReNew TOPCon M10 Bifacial Module, delivering superior efficiency of up to 22.84% and maximum power output of 590W. Equipped with N-type TOPCon cells, 16 busbars, and smart soldering, these modules are optimized for high durability, low degradation, and excellent performance even in low-light and high-temperature environments.

Key Features:

• Power Output: 565W – 590W with 0~+5W power tolerance

• Cell Type: N-type 144 Half-cut TOPCon bifacial M10 cells

• Bifacial Gain: Up to 80%

• Efficiency: Up to 22.84%

• Degradation: 1% in Year 1, 0.45% annually thereafter

• Durability: Handles 5400Pa snow & 2400Pa wind load

• Low Temp Coefficient: Ensures stable performance in hot weather

• Certifications: ISO 9001, ISO 14001, ISO 45001, IEC Certified

• Warranty: 12-year product warranty, 30-year performance guarantee

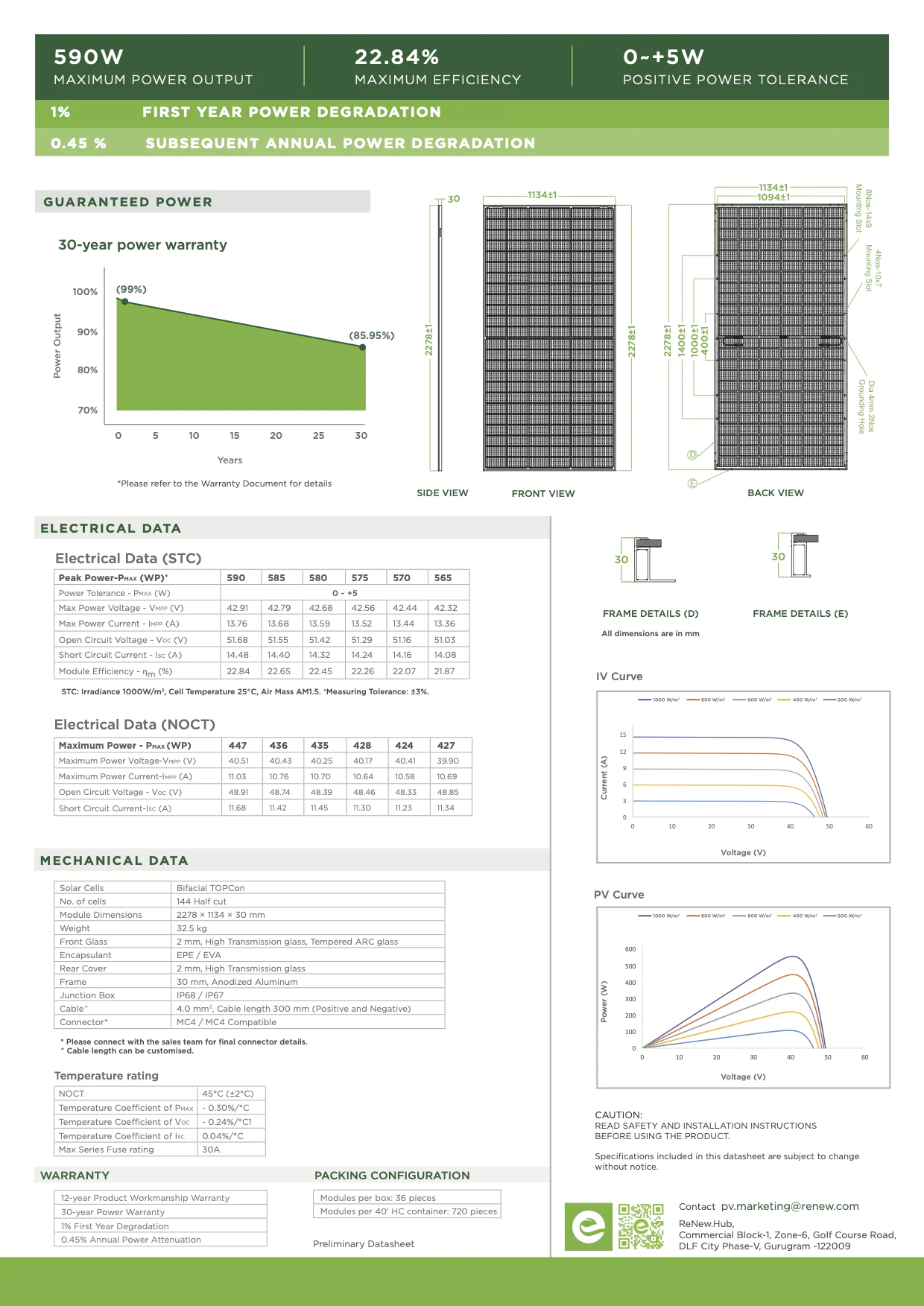

Mechanical Specs:

• Dimensions: 2278 × 1134 × 30 mm

• Weight: 32.5 kg

• Glass: 2mm tempered high-transmission ARC glass (front & rear)

• Frame: 30mm anodized aluminum

• Junction Box: IP68 / IP67

• Cable: 4.0 mm², 300 mm length (customizable)

• Connector: MC4 or compatible

These bifacial modules are ideal for utility-scale and industrial solar installations, delivering maximum performance with minimal maintenance over the long term.

🔋 Built for stability, power, and endurance — even in extreme conditions.
📩 Inquire now to power your project with ReNew’s most advanced solar module yet!
